- 产品详情
产品概述

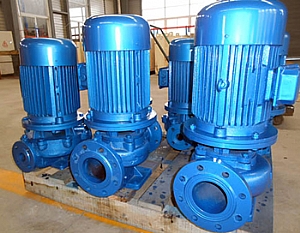

ISG单级管道离心泵,在一般立式泵的基础上进行巧妙组合设计而成,同时根据使用温度、介质等不同在ALG型基础上派生出适用热水、高温耐腐蚀化工泵、油泵。该系列产品具有高效节能、噪音低、性能可靠等优点。
二、主要用途
1. ISG单级管道离心泵,供输送清水及物理化学性质类似于清水的其他液体之用,适用于工业和城市给排水、高层建筑增压送水、园林喷灌、消防增压、远距离输送、暖通制冷循环、浴室等冷暖水循环增压及设备配套,使用温度T<80℃。
三、特点
1. 热水泵为立式结构,进出口口径相同,且位于同一中心线上,可象阀门一样安装于管路之中,外形紧凑美观,占地面积小,建筑投入低,如加上防护罩则可置于户外使用。
2. 叶轮直接安装在电机的长轴上,轴向尺寸短,结构紧凑,泵与电机轴承配置合理,能有效地平衡泵运转产生的径向和轴向负荷,从而确保了泵的运行平稳,振动小、噪音低。
3. 轴封采用机械密封或机械密封组合,采用进口钛合金密封环、中型耐高温机械密封和采用硬质合金材料,耐磨密封,能有效地延长机械密封的使用寿命。
4. 热水管道泵安装检修方便,无需拆动管路系统,只要卸下泵联体座螺母即可抽出全部转子部件。
5. 可根据使用要求即流量和扬程的需要采用泵的串、并联运用方式。
6. 可根据管路布置的要求采用泵的竖式和横式安装。
四、工作条件
1. 吸入压力≤1.0MPa,或泵系统最高工作压力≤1.6MPa,即吸入口压力+泵扬程≤1.6MPa、泵静压试验压力为≤2.5MPa,订货时请注明系统工作压力。泵系统工作压力大于1.6MPa时应在订货时另行提出,以便在制造时泵的过流部分和联接部分采用铸钢材料。
2. 环境温度<40℃,相对湿度<40%。
4. 所输送介质中固体颗粒体积含量不超过单位体积的0.1,粒度<0.2mm。
注:如果用介质为带有细小颗粒,请在订货时说明,以便本厂采用耐磨式机械密封。
五、性能参数表:
泵型号 |
流量 |
扬程 |
效率 |
转速 |
电机功率 |
汽蚀佘量 |
|
(m 3 /h) |
(l/s) |
||||||
65-100 |
25 |
6.94 |
12.5 |
69 |
2900 |
1.5 |
2.5 |
65-100A |
22.3 |
6.19 |
10 |
67 |
2900 |
1.1 |
2.5 |
65-125 |
25 |
6.94 |
20 |
68 |
2900 |
3.0 |
2.5 |
65-125A |
22.3 |
6.19 |
16 |
66 |
2900 |
2.2 |
2.5 |
65-160 |
25 |
6.94 |
32 |
63 |
2900 |
4.0 |
2.5 |
65-160A |
23.4 |
6.5 |
28 |
62 |
2900 |
4.0 |
2.5 |
65-160B |
21.6 |
6.0 |
24 |
58 |
2900 |
3.0 |
2.5 |
65-200 |
25 |
6.94 |
50 |
58 |
2900 |
7.5 |
2.5 |
65-200A |
23.5 |
6.53 |
44 |
57 |
2900 |
7.5 |
2.5 |
65-200B |
21.8 |
6.06 |
38 |
55 |
2900 |
5.5 |
2.5 |
65-250 |
25 |
6.94 |
80 |
50 |
2900 |
15 |
2.5 |
65-250A |
23.4 |
6.5 |
70 |
50 |
2900 |
11 |
2.5 |
65-250B |
21.6 |
6.0 |
60 |
49 |
2900 |
11 |
2.5 |
65-315 |
25 |
6.94 |
125 |
40 |
2900 |
30 |
2.5 |
65-315A |
23.7 |
6.58 |
113 |
40 |
2900 |
22 |
2.5 |
65-315B |
22.5 |
6.25 |
101 |
39 |
2900 |
18.5 |
2.5 |
65-315C |
20.6 |
5.72 |
85 |
38 |
2900 |
15 |
2.5 |
65-100(I) |
50 |
13.9 |
12.5 |
73 |
2900 |
3.0 |
3.0 |
65-100(I)A |
44.7 |
12.4 |
10 |
72 |
2900 |
2.2 |
3.0 |
65-125(I) |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3.0 |
65-125(I)A |
45 |
12.5 |
16 |
71 |
2900 |
4.0 |
3.0 |
65-160(I) |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3.0 |
65-160(I)A |
46.7 |
13.0 |
28 |
70 |
2900 |
7.5 |
3.0 |
65-160(I)B |
43.3 |
12.0 |
24 |
69 |
2900 |
5.5 |
3.0 |
65-200(I) |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3.0 |
65-200(I)A |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3.0 |
65-200(I)B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3.0 |
65-250(I) |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3.0 |
65-250(I)A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
3.0 |
65-250(I)B |
43.3 |
12.0 |
60 |
58 |
2900 |
15 |
3.0 |
65-315(I) |
50 |
13.9 |
125 |
54 |
2900 |
37 |
3.0 |
65-315(I)A |
46.5 |
12.9 |
110 |
54 |
2900 |
30 |
3.0 |
65-315(I)B |
44.5 |
12.4 |
100 |
53 |
2900 |
30 |
3.0 |
65-315(I)C |
41 |
11.4 |
85 |
51 |
2900 |
22 |
3.0 |
80-100 |
50 |
13.9 |
12.5 |
73 |
2900 |
3.0 |
3.0 |
80-100A |
44.7 |
12.5 |
10 |
72 |
2900 |
2.2 |
3.0 |
80-125 |
50 |
13.9 |
20 |
72.5 |
2900 |
5.5 |
3.0 |
80-125A |
45 |
12.5 |
16 |
71 |
2900 |
4.0 |
3.0 |
80-160 |
50 |
13.9 |
32 |
71 |
2900 |
7.5 |
3.0 |
80-160A |
46.7 |
13.0 |
28 |
70 |
2900 |
7.5 |
3.0 |
80-160B |
43.3 |
12.0 |
24 |
69 |
2900 |
5.5 |
3.0 |
80-200 |
50 |
13.9 |
50 |
67 |
2900 |
15 |
3.0 |
80-200A |
47 |
13.1 |
44 |
66 |
2900 |
11 |
3.0 |
80-200B |
43.5 |
12.1 |
38 |
65 |
2900 |
7.5 |
3.0 |
80-250 |
50 |
13.9 |
80 |
59 |
2900 |
22 |
3.0 |
80-250A |
46.7 |
13.0 |
70 |
59 |
2900 |
18.5 |
3.0 |
80-250B |
43.3 |
12.0 |
60 |
58 |
2900 |
15 |
3.0 |
80-315 |
50 |
13.9 |
125 |
54 |
2900 |
37 |
3.0 |
80-315A |
46.5 |
12.9 |
110 |
54 |
2900 |
30 |
3.0 |
80-315B |
44.5 |
12.4 |
100 |
53 |
2900 |
30 |
3.0 |
80-315C |
41 |
11.4 |
85 |
51 |
2900 |
22 |
3.0 |
80-100(I) |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
80-100(I)A |
89 |
24.7 |
10 |
74 |
2900 |
4.0 |
4.5 |
80-125(I) |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
80-125(I)A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
80-160(I) |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
80-160(I)A |
93.5 |
26.0 |
28 |
74 |
2900 |
11 |
4.5 |
80-160(I)B |
86.6 |
24.1 |
24 |
72 |
2900 |
11 |
4.5 |
80-200(I) |
100 |
27.8 |
50 |
74 |
2900 |
22 |
4.0 |
80-200(I)A |
93.5 |
26.0 |
44 |
73 |
2900 |
18.5 |
4.0 |
80-200(I)B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4.0 |
80-250(I) |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4.0 |
80-250(I)A |
93.5 |
26.0 |
70 |
68 |
2900 |
30 |
4.0 |
80-250(I)B |
87 |
24.2 |
60 |
66 |
2900 |
30 |
4.0 |
80-315(I) |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4.0 |
80-315(I)A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4.0 |
80-315(I)B |
90 |
25 |
101 |
65 |
2900 |
45 |
4.0 |
80-315(I)C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4.0 |
泵型号 |
流量 |
扬程 |
效率 |
转速 |
电机功率 |
汽蚀佘量 |
|
(m 3 /h) |
(l/s) |
||||||
100-100 |
100 |
27.8 |
12.5 |
76 |
2900 |
5.5 |
4.5 |
100-100A |
89 |
47 |
10 |
74 |
2900 |
4.0 |
4.5 |
100-125 |
100 |
27.8 |
20 |
76 |
2900 |
11 |
4.5 |
100-125A |
89 |
24.7 |
16 |
74 |
2900 |
7.5 |
4.5 |
100-160 |
100 |
27.8 |
32 |
76 |
2900 |
15 |
4.5 |
100-160A |
93.5 |
26.0 |
28 |
74 |
2900 |
11 |
4.5 |
100-160B |
86.5 |
24.1 |
24 |
72 |
2900 |
11 |
4.5 |
100-200 |
100 |
27.8 |
50 |
74 |
2900 |
22 |
4.0 |
100-200A |
93.5 |
26.0 |
44 |
73 |
2900 |
18.5 |
4.0 |
100-200B |
87 |
24.2 |
38 |
71 |
2900 |
15 |
4.0 |
100-250 |
100 |
27.8 |
80 |
69 |
2900 |
37 |
4.0 |
100-250A |
93.5 |
26.0 |
70 |
68 |
2900 |
30 |
4.0 |
100-250B |
87 |
24.2 |
60 |
66 |
2900 |
30 |
4.0 |
100-315 |
100 |
27.8 |
125 |
66 |
2900 |
75 |
4.0 |
100-315A |
95 |
26.4 |
113 |
66 |
2900 |
55 |
4.0 |
100-315B |
90 |
25.0 |
101 |
65 |
2900 |
45 |
4.0 |
100-315C |
82 |
22.8 |
85 |
63 |
2900 |
37 |
4.0 |
125-100 |
160 |
44.4 |
12.5 |
82 |
2900 |
11 |
4.0 |
125-100A |
143 |
39.7 |
10 |
77 |
2900 |
7.5 |
4.0 |
125-125 |
160 |
44.4 |
20 |
80 |
2900 |
15 |
4.0 |
125-125A |
143 |
39.7 |
16 |
77 |
2900 |
11 |
4.0 |
125-160 |
160 |
44.4 |
32 |
78 |
2900 |
22 |
4.0 |
125-160A |
150 |
41.7 |
28 |
76 |
2900 |
18.5 |
4.0 |
125-160B |
138 |
38.3 |
24 |
73 |
2900 |
15 |
4.0 |
125-200 |
160 |
44.4 |
50 |
77 |
2900 |
37 |
5.5 |
125-200A |
150 |
41.7 |
44 |
76 |
2900 |
30 |
5.5 |
125-200B |
138 |
38.3 |
37.5 |
75 |
2900 |
30 |
5.5 |
125-250 |
160 |
44.4 |
80 |
75 |
2900 |
55 |
5.0 |
125-250A |
150 |
41.7 |
70 |
74 |
2900 |
45 |
5.0 |
125-250B |
138 |
38.3 |
60 |
73 |
2900 |
37 |
5.0 |
125-315 |
160 |
44.7 |
125 |
70 |
2900 |
90 |
5.0 |
125-315A |
150 |
41.7 |
110 |
70 |
2900 |
75 |
5.0 |
125-315B |
143 |
39.7 |
100 |
69 |
2900 |
75 |
5.0 |
125-315C |
134 |
37.2 |
88 |
67 |
2900 |
55 |
5.0 |
150-200 |
200 |
55.6 |
12.5 |
78 |
1450 |
15 |
3.0 |
150-200A |
176 |
49.7 |
10 |
76 |
1450 |
11 |
3.0 |
150-250 |
200 |
55.6 |
20 |
79 |
1450 |
18.5 |
3.0 |
150-250A |
184.4 |
51.2 |
17 |
78 |
1450 |
15 |
3.0 |
150-250B |
167 |
46.4 |
14 |
76 |
1450 |
11 |
3.0 |
150-315 |
200 |
55.6 |
32 |
78 |
1450 |
30 |
3.5 |
150-315A |
187 |
51.9 |
28 |
77 |
1450 |
22 |
3.5 |
150-315B |
173 |
48.1 |
24 |
76 |
1450 |
18.5 |
3.5 |
150-400 |
200 |
55.6 |
50 |
75 |
1450 |
45 |
3.5 |
150-400A |
187 |
51.9 |
44 |
74 |
1450 |
37 |
3.5 |
150-400B |
174 |
48.3 |
38 |
73 |
1450 |
30 |
3.5 |
150-400V |
160 |
44.4 |
32 |
71 |
1450 |
22 |
3.5 |
150-250(I) |
200 |
55.6 |
80 |
76 |
2900 |
75 |
4.5 |
150-250(I)A |
187 |
51.9 |
70 |
75 |
2900 |
55 |
4.5 |
150-250(I)B |
173 |
48.1 |
60 |
74 |
2900 |
45 |
4.5 |
150-315(I) |
200 |
55.6 |
125 |
73 |
2900 |
111 |
4.5 |
150-315(I)A |
187 |
51.9 |
110 |
72 |
2900 |
90 |
4.5 |
150-315(I)B |
173 |
48.1 |
95 |
70 |
2900 |
75 |
4. |
泵型号 |
流量 |
扬程 |
效率 |
转速 |
电机功率 |
汽蚀佘量 |
|
(m 3 /h) |
(l/s) |
||||||
200-200 |
200 |
55.6 |
12.5 |
78 |
1450 |
15 |
3.0 |
200-200A |
179 |
49.7 |
10 |
76 |
1450 |
11 |
3.0 |
200-250 |
200 |
55.6 |
20 |
79 |
1450 |
18.5 |
3.0 |
200-250A |
184.4 |
51.2 |
17 |
78 |
1450 |
15 |
3.0 |
200-250B |
167 |
46.4 |
14 |
76 |
1450 |
11 |
3.0 |
200-315 |
200 |
55.6 |
32 |
78 |
1450 |
30 |
3.5 |
200-315A |
189 |
51.9 |
28 |
77 |
1450 |
22 |
3.5 |
200-315B |
173 |
48.1 |
24 |
76 |
1450 |
18.5 |
3.5 |
200-400 |
200 |
55.6 |
50 |
75 |
1450 |
45 |
3.5 |
200-400A |
187 |
51.9 |
44 |
74 |
1450 |
37 |
3.5 |
200-400B |
174 |
48.6 |
38 |
73 |
1450 |
30 |
3.5 |
200-400C |
160 |
44.4 |
32 |
71 |
1450 |
22 |
3.5 |
200-200(I) |
400 |
111.1 |
12.5 |
80 |
1450 |
22 |
4.0 |
200-200(I)A |
358 |
99.4 |
10 |
73 |
1450 |
18.5 |
4.0 |
200-250(I) |
400 |
111.1 |
20 |
80 |
1450 |
30 |
4.0 |
200-250(I)A |
358 |
99.4 |
16 |
78 |
1450 |
22 |
4.0 |
200-250(I)B |
322 |
89.4 |
13 |
75 |
1450 |
18.5 |
4.0 |
200-315(I) |
400 |
111.4 |
32 |
80 |
1450 |
55 |
4.0 |
200-315(I)A |
374 |
103.9 |
28 |
79 |
1450 |
45 |
4.0 |
200-315(I)B |
346 |
96.1 |
, 24 |
78 |
1450 |
37 |
4.0 |
200-400(I) |
400 |
111.4 |
50 |
81 |
1450 |
75 |
4.0 |
200-400(I)A |
374 |
103.9 |
44 |
80 |
1450 |
75 |
4.0 |
200-400(I)B |
346 |
96.1 |
38 |
78 |
1450 |
55 |
5.0 |
200-400(I)C |
320 |
88.9 |
32 |
76 |
1450 |
45 |
5.0 |
300-235 |
720 |
200 |
18 |
81 |
970 |
55 |
5.0 |
300-235A |
607 |
182.5 |
15 |
79 |
970 |
45 |
5.0 |
300-235B |
600 |
167.0 |
12.5 |
77 |
970 |
37 |
5.0 |
300-300 |
720 |
200 |
28 |
81 |
970 |
75 |
5.0 |
300-300A |
666 |
185 |
24 |
80 |
970 |
75 |
5.0 |
300-300B |
623 |
173.1 , |
21 |
79 |
970 |
55 |
5.0 |
,
300-380 |
720 |
200 |
44 |
84 |
970 |
132 |
5.0 |
300-380A |
666 |
185 |
38 |
80 |
970 |
110 |
5.0 |
300-380B |
614 |
170.6 |
32 |
78 |
970 |
90 |
5.0 |
300-235(I) |
1080 |
300 |
40 |
82 |
1450 |
160 |
5.5 |
300-235(I)A |
965 |
268.1 |
32 |
80 |
1450 |
132 |
5.5 |
300-250 |
720 |
200 |
20 |
83 |
1450 |
55 |
6.0 |
300-250A |
600 |
166 |
17 |
81 |
1450 |
45 |
6.0 |
300-300 |
720 |
200 |
28 |
82 |
1480 |
75 |
5.0 |
300-300A |
600 |
166 |
24 |
80 |
1480 |
75 |
5.0 |
300-300B |
540 |
150 |
21 |
78 |
1480 |
55 |
5.0 |
300-315 |
720 |
200 |
32 |
84 |
1480 |
90 |
4.5 |
300-315A |
650 |
180 |
28 |
80 |
1480 |
75 |
4.5 |
300-315B |
580 |
161 |
24 |
78 |
1480 |
55 |
4.5 |
300-380 |
720 |
200 |
44 |
84 |
970 |
132.0 |
5.0 |
300-380A |
666 |
185 |
38 |
80 |
970 |
110.0 |
5.0 |
300-380B |
614 |
170.6 |
32 |
78 |
970 |
90.0 |
5.0 |
300-390 |
720 |
200 |
18 |
81 |
980 |
55 |
5.0 |
300-390A |
600 |
167 |
15 |
79 |
980 |
45 |
5.0 |
300-390B |
540 |
150 |
12.5 |
77 |
980 |
37 |
5.0 |
300-400 |
600 |
166 |
50 |
78 |
1480 |
110 |
5.0 |
300-480 |
720 |
200 |
28 |
81 |
980 |
75 |
5.0 |
300-480A |
600 |
166 |
24 |
80 |
980 |
75 |
5.0 |
300-480B |
540 |
150 |
21 |
79 |
980 |
55 |
5.0 |
350-235 |
800 |
222 |
12.5 |
83 |
1480 |
37 |
4.5 |
350-300 |
800 |
222 |
20 |
82 |
1480 |
55 |
4.5 |
350-315 |
800 |
222 |
32 |
84 |
1480 |
90 |
4.5 |
350-400 |
800 |
222 |
50 |
83 |
1480 |
160 |
4.5 |
400-300 |
1080 |
300 |
20 |
78 |
1480 |
90 |
6.0 |
400-315 |
1080 |
300 |
32 |
76 |
1480 |
132 |
6.0 |
500-300 |
1200 |
333 |
20 |
80 |
1480 |
110 |
6.0 |
500-315 |
1200 |
222 |
32 |
78 |
1480 |
160 |
6.0 |
